Magicyle Deer Mini 20″ Step-Thru Full Suspension

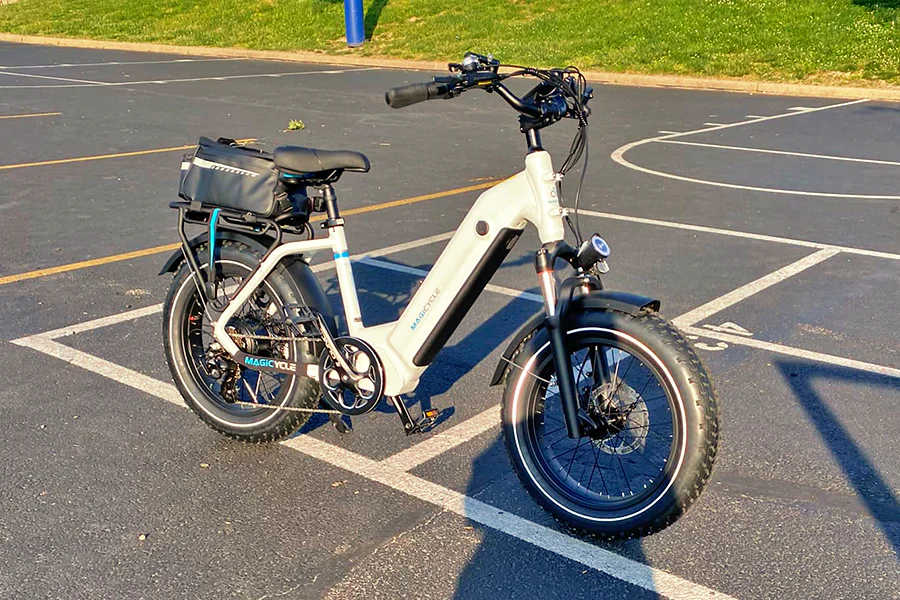

Magicycle 20″ Deer Mini Step-Thru Full Suspension Ebike SUV

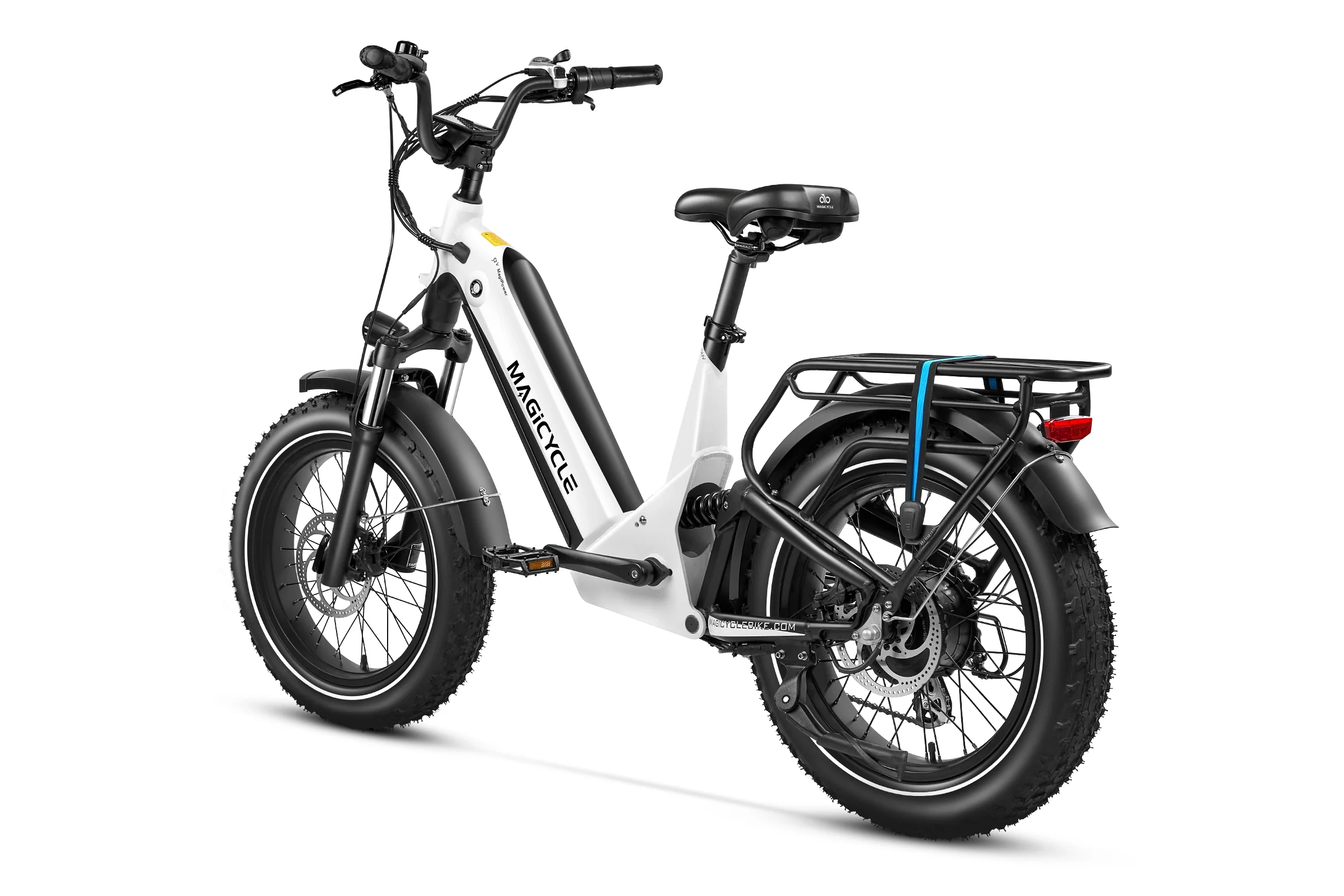

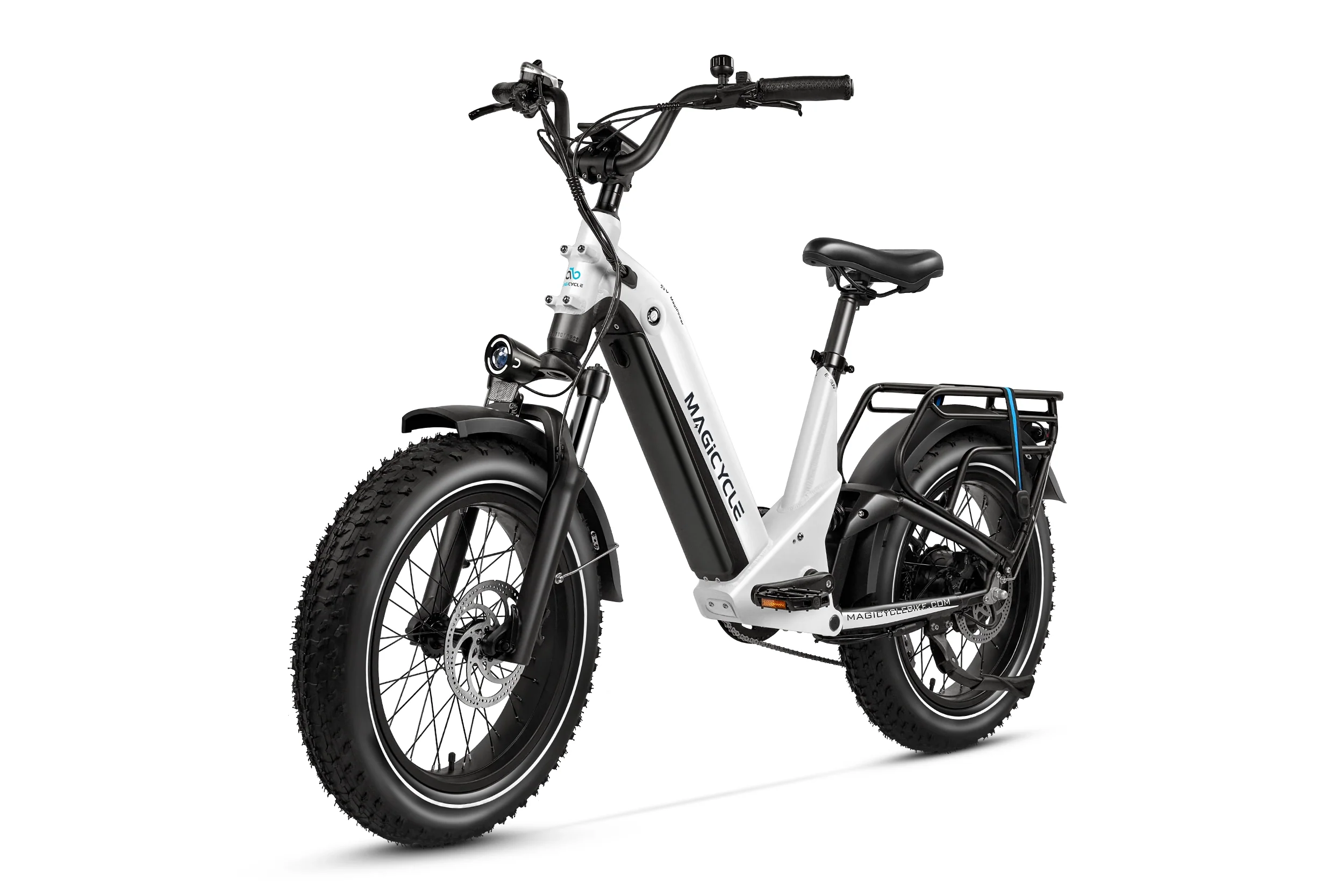

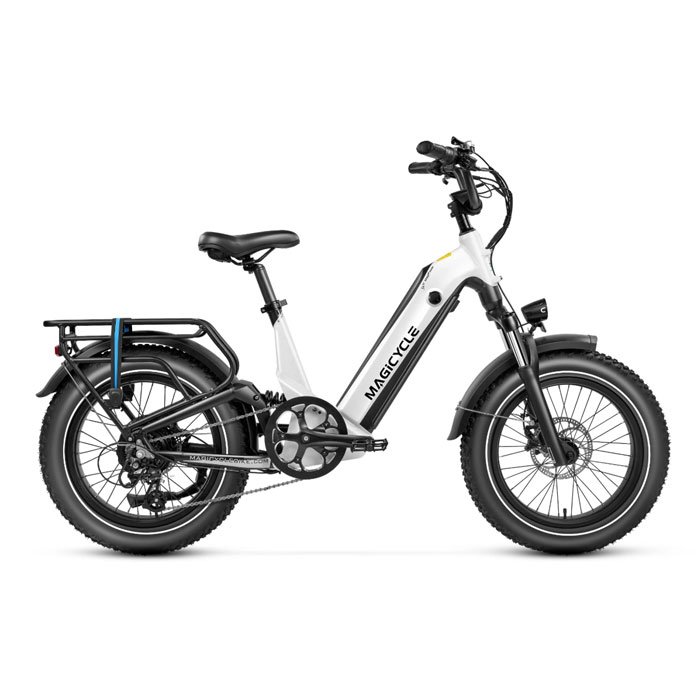

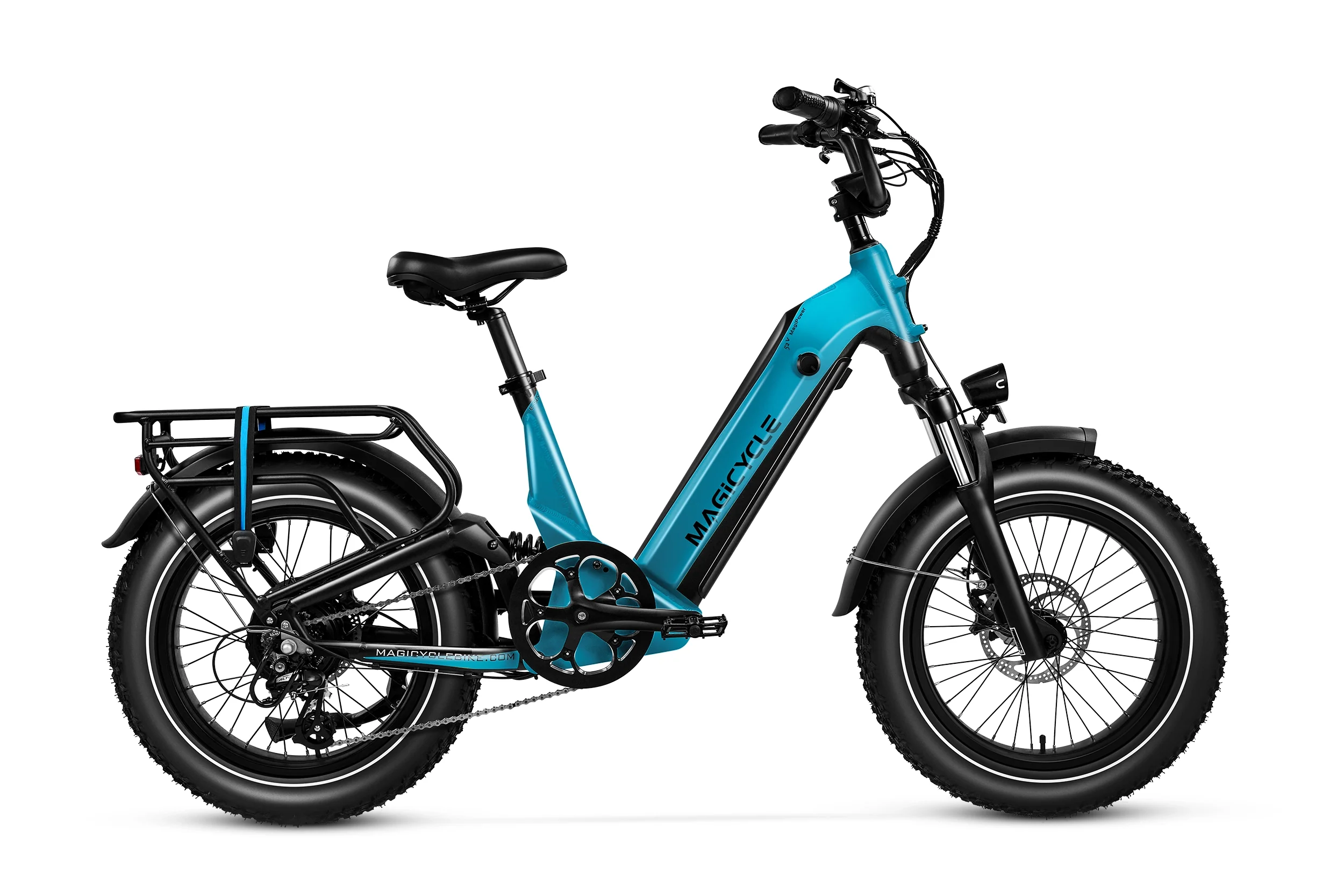

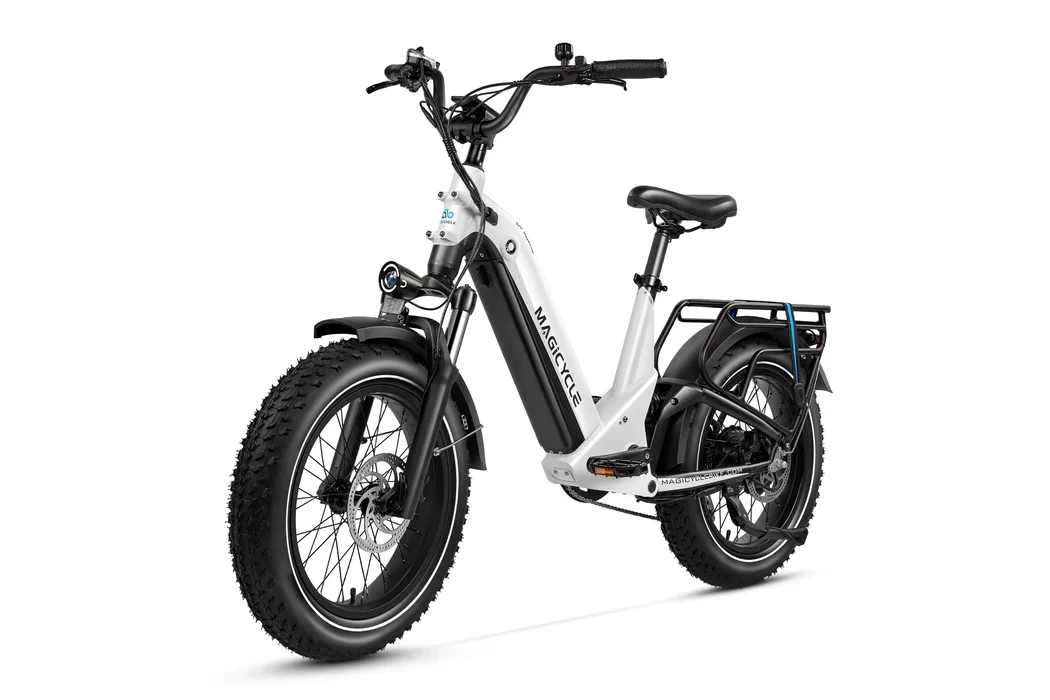

The Magicycle 20″ Deer Step-Thru Full Suspension Ebike SUV is a versatile electric bike designed for both urban commuting and off-road adventures. Equipped with a powerful 750W brushless gear motor (peaking at 1500W) and a high-capacity 52V 20Ah lithium battery, it offers an impressive range of up to 100 miles per charge. The full suspension system, comprising a hydraulic lockout front fork and rear shock absorber, ensures a smooth and comfortable ride across various terrains. Its step-thru frame design facilitates easy mounting and dismounting, catering to a wide range of riders. With features like 20″ x 4″ Kenda fat tires, Tektro 180mm hydraulic disc brakes, and a Shimano 7-speed gear system, the Magicycle Deer is well-suited for both daily commutes and outdoor explorations.

Key Features

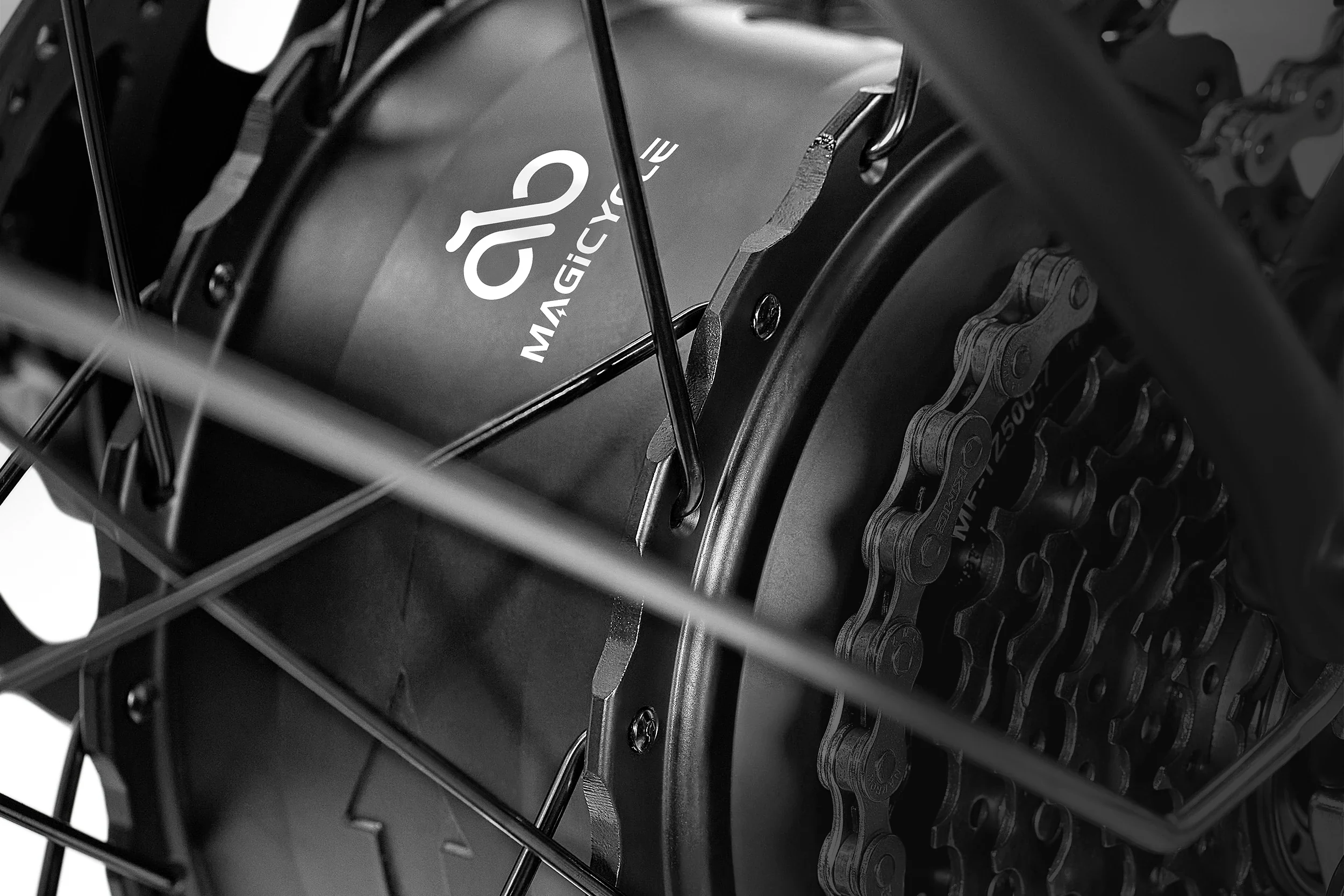

• Powerful Motor: 750W brushless gear motor with a peak output of 1500W and 100Nm torque for effortless hill climbs and acceleration.

• Long-Range Battery: 52V 20Ah lithium battery providing up to 100 miles of range on a single charge.

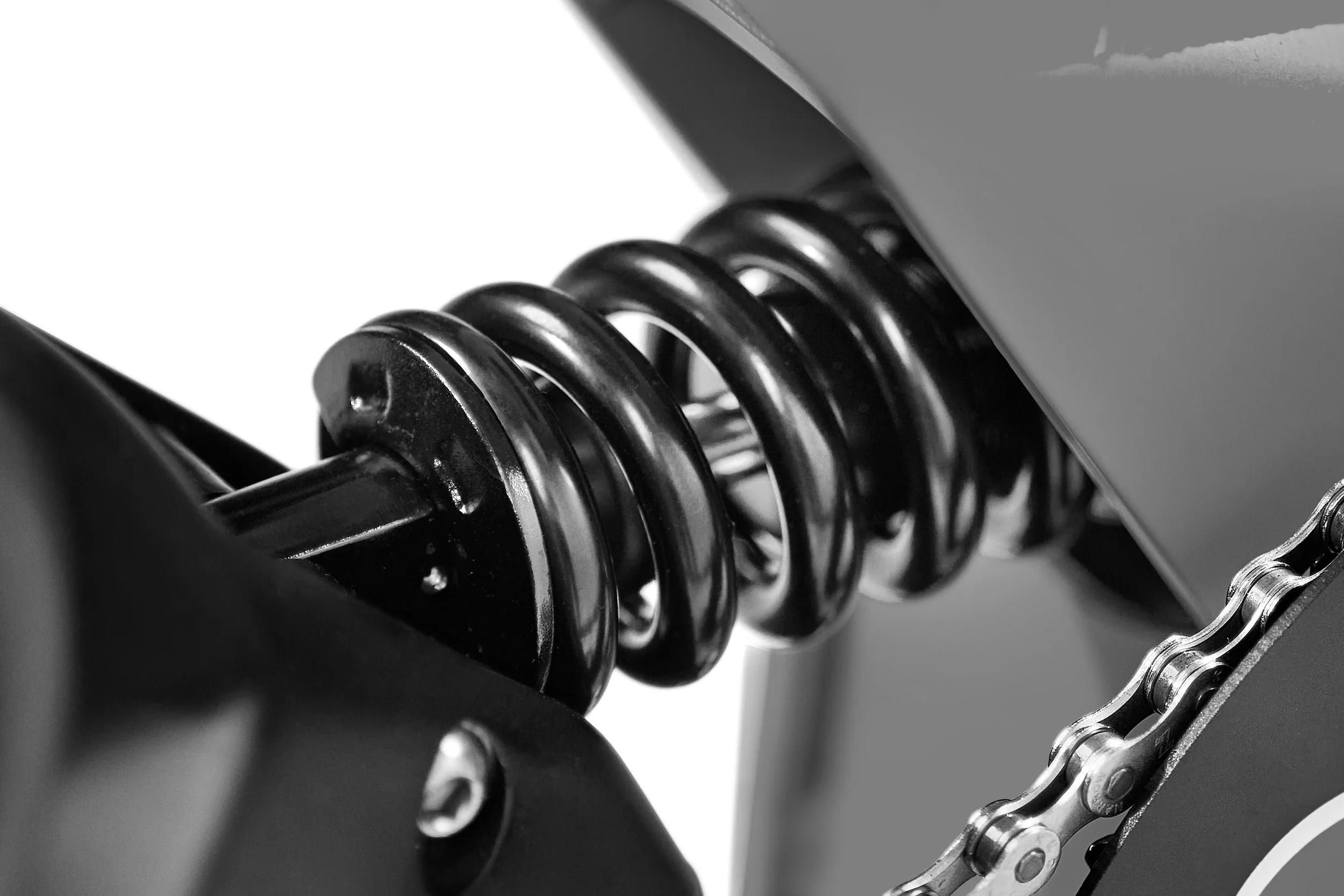

• Full Suspension System: Front alloy hydraulic lockout suspension fork and rear shock absorber for a smooth ride on rough terrains.

• Hydraulic Disc Brakes: Tektro 180mm hydraulic disc brakes ensure responsive and reliable stopping power.

• Color LCD Display: IPX6 water-resistant display with USB charging port, offering real-time riding data and customization options.

• Puncture-Resistant Fat Tires: 20″ x 4″ Kenda fat tires provide stability and traction on various terrains.

• Shimano 7-Speed Gear System: Allows for versatile riding across different terrains.

• High Payload Capacity: Supports up to 450 lbs, accommodating a wide range of riders and cargo.

Technical Specifications

• Battery: 52V 20Ah lithium battery.

• Motor: 750W brushless gear motor (1500W peak).

• Torque: 100Nm.

• Range: Up to 100 miles per charge.

• Top Speed: Up to 28 MPH with pedal assist.

• Charging Time: 4–7 hours with a 3.0A fast smart charger.

• Display: Color LCD with USB charging port.

• Pedal Assist: 7 levels with 12-magnet cadence sensor.

• Brakes: Tektro 180mm hydraulic disc brakes.

• Tires: 20″ x 4″ Kenda puncture-resistant fat tires.

• Frame Size: 18″ 6061 aluminum frame.

• Weight: 83 lbs (37.6 kg).

• Payload Capacity: Up to 450 lbs.

• Recommended Rider Height: 4’10” – 6’2″.

• Front Fork: Alloy hydraulic lockout suspension fork.

• Gearing: Shimano 7-speed gear shift system.

• Throttle: Half-twist throttle.

• Controller: 52V 750W FOC smart controller (IPX8).
