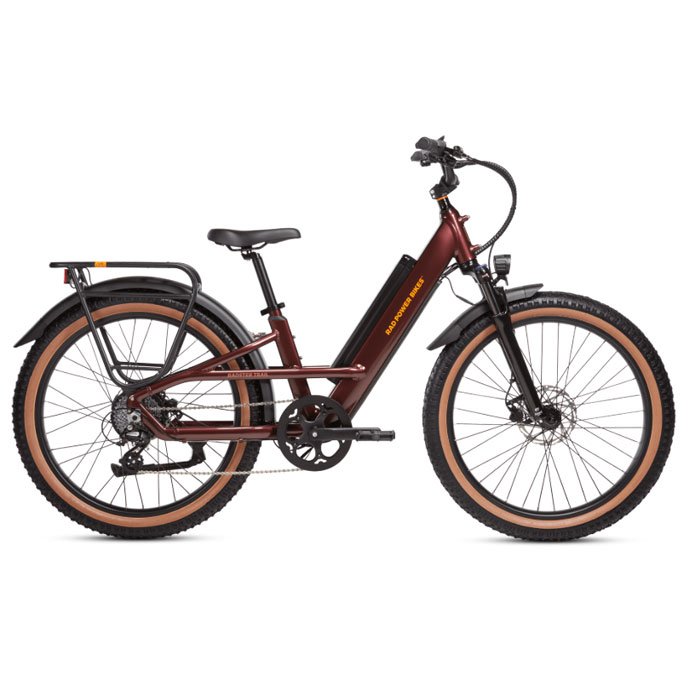

Radster™ Trail Electric Off-Road Bike
Original price was: $2,655.00.$2,499.99Current price is: $2,499.99.
-
The Radster™ Trail Electric Off-Road Bike is built for adventure with powerful performance and rugged durability. Featuring a 750W motor, hydraulic disc brakes, and front suspension, it’s perfect for conquering trails and steep hills. With a long range of up to 65 miles and Class 3 capability, this e-bike offers speed, comfort, and control for every off-road ride.
Radster Trail Electric Off-Road Bike – Powerful 750W Motor & Long Range
Tackle any terrain with confidence using the Radster™ Trail Electric Off-Road Bike. Designed for adventurous riders, this bike combines rugged power with smart features. Its 750W rear hub motor gives you strong acceleration and reliable hill-climbing ability. You’ll enjoy the freedom to explore trails, gravel roads, and steep inclines with ease.
The Radster Trail features a 100mm suspension fork that absorbs shocks and bumps. Whether you’re cruising through dirt paths or forest trails, the ride stays smooth and stable. The 48V, 15Ah battery offers up to 65 miles of range, letting you go farther on every adventure. Charging is easy and convenient with the removable design.
Hydraulic disc brakes provide dependable stopping power in any weather. The 7-speed drivetrain gives you flexibility on both flat and hilly terrain. With its puncture-resistant, all-terrain tires, you’ll feel in control even on loose surfaces.
Comfort is key. The ergonomic seat, wide handlebars, and upright geometry help reduce fatigue during long rides. Built-in lights, fenders, and a rear rack make it ready for any off-road or backroad trip. The smart display shows speed, distance, battery life, and pedal assist levels.
Choose from multiple pedal assist levels or use the throttle when you need an extra boost. Whether you’re a weekend explorer or a daily adventurer, the Radster Trail is built to match your lifestyle.
Ride with power, stability, and confidence—on or off the beaten path.
Key Features
KEY SPECS
Motor: 750W rear hub motor (peak 1000W)
Battery: 48V, 15Ah (720Wh) removable lithium-ion
Range: Up to 65 miles per charge
Top Speed: Up to 28 MPH (Class 3)
Payload Capacity: 320 lbs
Tires: 27.5” x 3” off-road tires
Brakes: Hydraulic disc brakes with 4-piston calipers
Technical Specifications
| Brand | Radwagon |
|---|---|
| Motor | 750W |
| Top Speed | 28 MPH (Class 3) |
| Range | 45+ miles |
| Frame | 6061 aluminum |
| Payload Capacity | 370 lb |
| Gears | 8-speed drivetrain |
| Suspension | 80mm front suspension fork |
| Charging Time | 6-7 hours |
| Warranty | 2-Year Warranty |
| Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
| Class | Class switchable 1 to 3. Ships in Class 2 status. |
| Display | Rad custom color display. See Display section below for details. |
| Hub Motor | Rear hub 750W, 100 Nm torque |
| Lights | Front and Rear. |
| Pedal Assist | Torque sensor, 5 PAS Levels, plus a zero assist option |
| Throttle | Half twist throttle |
| UL Status | UL Certified to UL 2849 and UL 2271 |
| USB Ports | One USB-C port, located on remote |
| Bell | Yes |
| Brake System | Rad Power Bikes approved hydraulic disc brakes |
| Brake Pads | Tektro semi-metallic P20.11 |
| Brake Rotors | 180mm x 1.8mm |
| Crank Set | 50T with dual sided chain ring cover, 170mm crank arms |
| Derailleur | Shimano 8-speed |
| Fenders | Front and full rear alloy mudguard |
| Fork | Hydraulic suspension fork, 80mm travel, tapered steerer tube, thru axle |
| Freewheel/Cassette | 8-speed freewheel, 11-34T |
| Grips | Ergonomic comfort grips |
| Handlebar | Aluminum, 710 mm wide |
| Kickstand | Side mounted, adjustable angle kickstand |
| Pedals | Alloy Platform, Boron axle with reflectors, standard 9/16″ X 20 TPI threading |
| Rear Rack | Integrated, 55 lb (25 kg) carrying capacity |
| Saddle | Padded sport saddle with shallow anatomic cut-out and contoured sides |
| Seatpost | Regular: 350 mm x 31.6 mm Large: 400 mm x 31.6 mm |
| Seatpost Clamp | 38.1 mm |
| Shifter | Shimano 8-speed thumb shifter |
| Stem | 40mm A-head |
| Rider Heights | 4’11”-5’8″ (150-173 cm) |
| Bike Weight | 77.5 lb (35.2 kg), 68.5 lb (31.1 kg) with battery removed |
| Payload | 370 lb, 290 lb. max rider |
| Rear Rack Payload | 55 lb (25 kg) |
| Handlebar Height | 44.5″ (113.0 cm) |
| Reach | 15.2″ (386 mm) |
| Seat Height | From ground: 30.5″ – 37.5″ (78.7 – 95.3 cm) From pedal bottom stroke: 25″ – 33″ (64 – 84 cm) |
| Standover Height | 21″ (53.3 cm) |
| Stepover Height | 20″ (50.8 cm) |
| Total Length | 74″ (188 cm) |
| Wheelbase | 46.6″ (118.3 cm) |
| Seat Tube Length | 15.0″ (380 mm) |
| Speed | 20-30 MPH |
